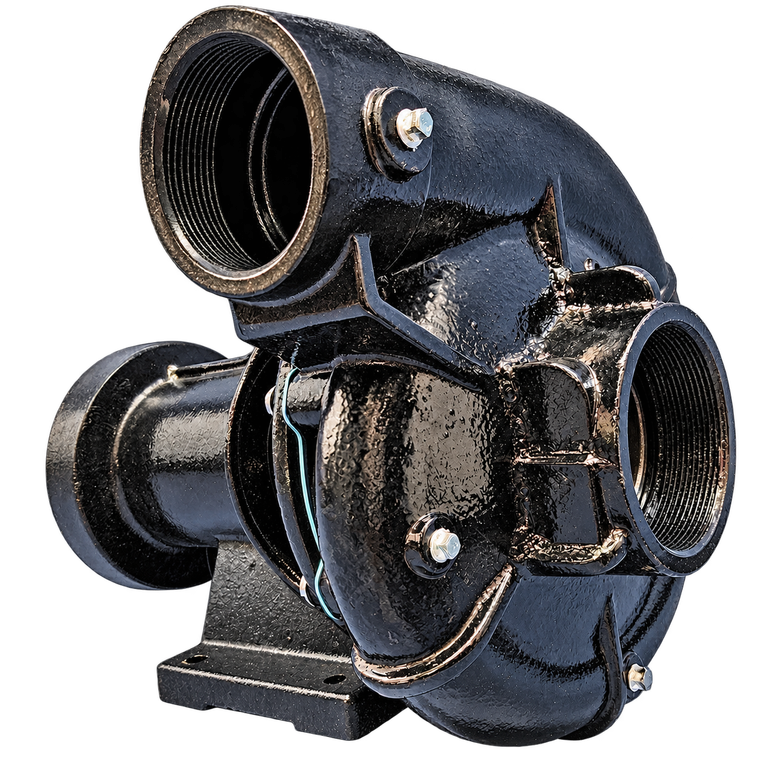

IronRidge 4x3 Heavy-Duty Water Truck Pump, CW, Rope Seal, Threaded, B3Z-HD Style

IronRidge 4x3 Heavy-Duty Water Truck Pump, CW, Rope Seal, Threaded, B3Z-HD Style

IronRidge Truck Parts
SKU:
30002
$1,450.00
(No reviews yet)
Weight:
130.00 LBS
Width:
14.50 (in)
Height:
15.00 (in)
Depth:
21.00 (in)
Current Stock:
Adding to cart… The item has been added
Description

Pump Rotation-Why it Matters?

How to Properly Replace and Set Rope Packing

Overview

IronRidge 4x3 Heavy-Duty Water Truck Pump is a centrifugal replacement pump for water trucks and other water-distribution equipment. It combines a 4-inch suction, 3-inch discharge, rope packing seal, and NPT threaded connections in a heavy-duty B3Z-style configuration built for demanding service.

Features and Benefits

  • Upgraded heavy-duty bearings support use in demanding applications.
  • Larger 1-1/2-inch shaft adds a more robust drive setup.
  • Rope packing seal is serviceable for maintenance-friendly operation.
  • NPT threaded connections provide a familiar threaded hookup for installation.

Applications

  • Water trucks
  • Dust-control systems
  • Irrigation equipment
  • Other water-distribution applications

Product Details

  • Rotation: Clockwise (CW)
  • Suction: 4-inch
  • Discharge: 3-inch
  • Seal: Rope Packing Seal
  • Connections: NPT Threaded Connections
  • Shaft: Heavy-duty 1-1/2-inch shaft with 3/8-inch keyway
  • Bearings: Upgraded Heavy-Duty Bearings
  • Configuration: Heavy-duty B3Z-style replacement pump

Installation and Service Notes

  • Threaded NPT connections support straightforward hookup to compatible plumbing.
  • The rope packing seal can be adjusted and serviced as part of routine maintenance.

Cross-Reference Part Numbers

  • Berkeley: B86070
  • Access Truck Parts: 101-B86070
Warranty
IronRidge Limited 1-Year Warranty
Additional Information
Connection Type:
Threaded
Seal Type:
Rope Packing
Rotation:
CW
